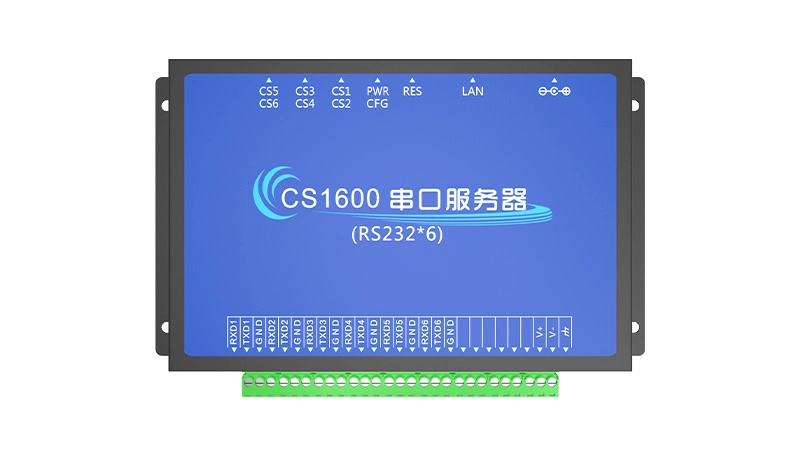

Industrial-grade Multi-port Serial Server - 6-port RS232 to Ethernet Port - CS1600 - IPCSUN
Product Introduction
Solve the connection limitations and management needs of traditional serial devices in the modern network environment, and realize the remote access, centralized management and integration of devices with other systems. "Networking" traditional serial devices solves the pain points such as physical distance, system integration, centralized management and remote operation and maintenance, and is a key bridge connecting "traditional devices" with "modern networks" in scenarios such as industrial automation, smart parks and Internet of Things upgrades.
Technical Parameters
| Parameter Category | Parameter Item | Parameter Value |
| Serial Port Parameters | Interface Type | 6-channel RS232 |
| Interface Form | Industrial wiring terminal | |
| Baud rate | 1200-115200bps | |
| Operating Mode | TCPServer/TCPClient/UDP | |
| Supported Bits | 7 or 8 bits | |
| Stop Bit | 1 bit and 2 bits | |
| Parity Check Method | Odd parity, even parity, no parity | |
| Lightning Protection Level | 500W Lightning Surge | |
| Overvoltage and Overcurrent Protection | 30V/100mA | |
| Ethernet Port Parameters | Ethernet Port Protection | 2KV Electromagnetic Isolation Protection |
| Power Parameters | Voltage | DC9-30V, reverse connection, overcurrent and overvoltage protection |
| Power | ≦1.4W | |
| Lightning Protection Level | 1500W lightning surge | |
| Environmental Requirements | Operating Temperature | -40℃～80℃ |
| Operating Humidity | ≦95%RH | |
| Storage Temperature | -40℃～80℃ | |
| Storage Humidity | ≦95%RH |
Product Advantages
◆ Supports registration function for convenient connection to cloud platforms
Industry Applications
